1.5-3km 1.2G 1500mW 8CH Wireless AV Tranmsitter&Receiver
F-2815MW wireless video transmission equipment is an excellent all aspects of performance are more varieties, and its large power margin, more suitable for complex physical environment. The use of 0dB ( Original small antenna) in full to the antenna, the open area to ensure the transmission 1500-3000m or so, if the raising of the high gain directional antenna, the distance can be increased upto longer range. And transmitter technology is superb and the special metal is more conducive to heat, more suitable for long hours of work. Signal input with common AV interface ,it can easily work with camera, VCD, DVD and all other conventional AV interfaces compatible.
Features
1. Wireless transmission: no need to set up communications cable
2. Image, audio sync, color black and white compatible
3. Small size, light weight, easy to carry, good installation
4. Responsive, timely, send and receive real-time transmission
5. Using FM mode, anti-interference ability, good image quality
6. Highly integrated, stable and reliable transmission distance
7. DC power supply, easy to use.
8. Plug-to-play
Specification
| Model | F-2815MW |
| Voltage | DC12V |
| Current | TX: 320mA/RX: 260mA |
| Frequency | 1.2Ghz |
| Number of channels | 8CH |
| Transmit Power | 1500mW |
| Video Output | 1 Vp-p(FM) |
| Audio Output | 1 Vp-p(FM) |
| Audio Carrier Ware | 5.5M 6.0M |
| Distance (Open environment) | 1500m-3000meters |
| Overall Configuration | Transmitter, receiver, video cable, power supply, antenna |
| Working Temperature | -10℃～+50℃ |
| Transmitter Weight | 85g |
| Receiver Weight | 115g |
| Overall Weight | 55g |
| TX Dimensions (L * W * H) | 72*43.5*13.5mm |
| RX Dimensions (L * W * H) | 115*67*21mm |
| Transmitter accessories | transmitter,antenna,Tx cable,1.25A adapter. |
| Receiver Accessories | Receiver,antenna,AV cable.(We don’t offer adatper for receiver,please use DC 12V 1A adapter.) |
|
|

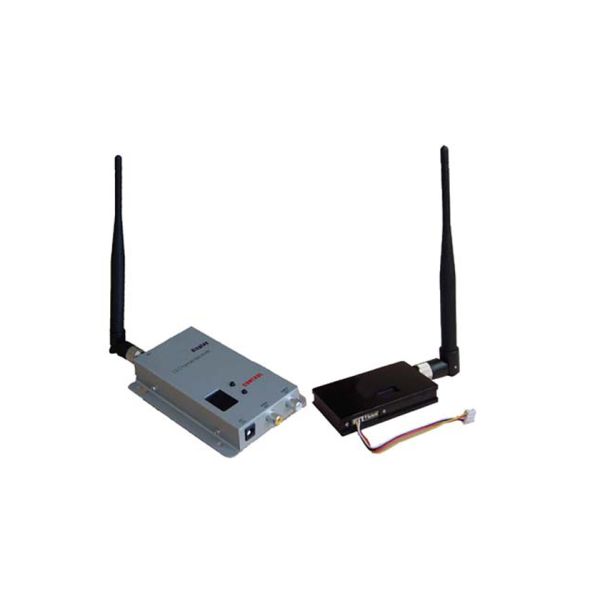

1.5-3km 1.2G 1500mW 8CH Wireless AV Tranmsitter&Receiver Images
|
